9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18

135 - RESIDUE DISPOSAL( УТИЛИЗАЦИЯ ОСТАТКОВ )

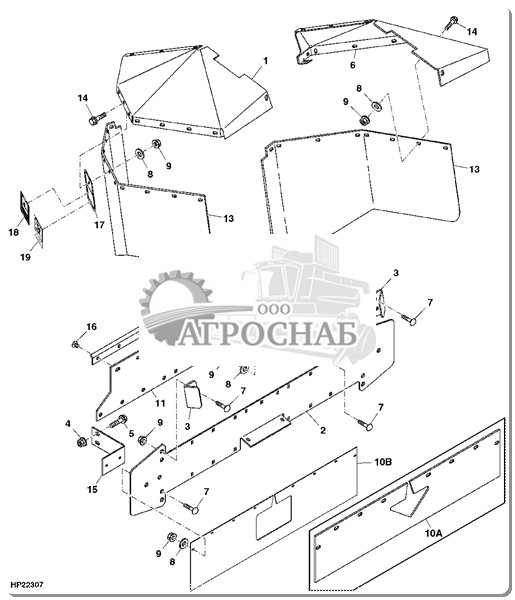

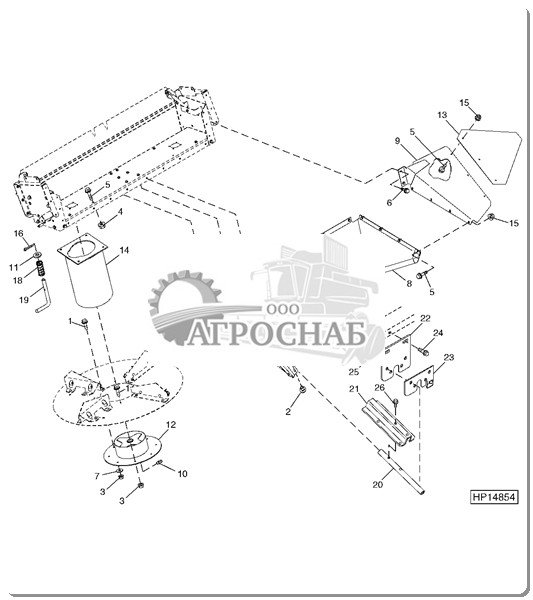

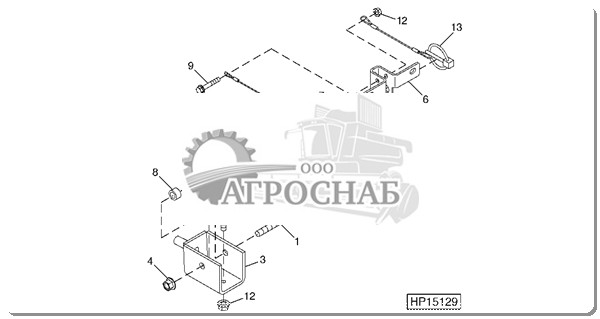

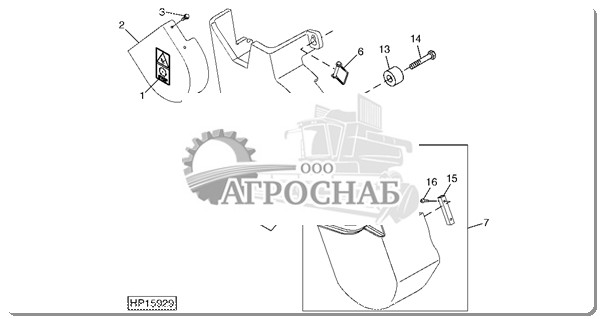

Straw Chopper ( - 715400)(Измельчитель Соломы )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	H168323	Strip	1		X	X
2	H157528	Seal	1		X	X
3	H172614	Sheet	1		X	X
4	H205286	Chute	1		X	X	RH
5	R120256	Screw	1		X	X
6	14M7589	Lock Nut	2		X	X	M16 (SUB FOR W39621)
7	AH168277	Door	1		X	X
8	AH205104	Sheet	1		X	X	LH
9	AH215919	Sheet	1		X	X	RH, (SUB FOR H201993)
10	19M7824	Screw	2		X	X	M16 X 60
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	H176787	Bushing	2		X	X
12	H157499	Plate	2		X	X
13	03M7184	Bolt	6		X	X	M8 X 20
14	H137328	Lock Nut	AR		X	X	M8
15	19M7866	Screw	AR		X	X	M8 X 20
16	AH89557	Clip	AR		X	X
17	14M7298	Flange Nut	AR		X	X	M8
18	19M7867	Screw	AR		X	X	M8 X 25
19	03M7190	Bolt	4		X	X	M10 X 20
20	H174305	Bracket	1		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
21	H135891	Lock Nut	4		X	X
22	24H1341	Washer	2		X	X	17/32" X 15/16" X 0.060"
23	H136179	Pin	2		X	X
24	11M7059	Cotter Pin	2		X	X	3.200 X 20 mm
25	24M7101	Washer	AR		X	X	11 X 34 X 3 mm
26	19M7844	Screw	4		X	X	M16 X 45
27	B28970	Spring	2		X	X
28	H205285	Chute	1		X	X	LH
29	24M7207	Washer	10		X	X	8.400 X 24 X 2 mm
30	H175500	Sheet	1		X	X	LH
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
31	H207703	Sheet	1		X	X	RH
32	14M7296	Flange Nut	4		X	X	M10
33	AH201984	Bracket	2		X	X
34	19M7835	Screw	4		X	X	M10 X 35
35	H206978	Label	1		X	X
36	H204853	Flap	2		X	X
37	AH201004	Deflector	1		X	X
38	24H1448	Washer	1		X	X	1-1/32" X 1-1/2" X 0.120"
39	AH201027	Plate	1		X	X
40	AH201026	Handle	1		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
41	H201023	Pin	1		X	X
42	H174818	Ring	1		X	X
43	W25634	Grip	1		X	X
44	H165317	Screw	1		X	X
45	H201116	Plate	1		X	X
46	R117879	Bushing	1		X	X
47	R28783	Compression Spring	1		X	X
48	H204598	Channel	1		X	X
49	24M7024	Washer	8		X	X	9 X 28 X 3 mm
50	03M7185	Bolt	6		X	X	M8 X 25

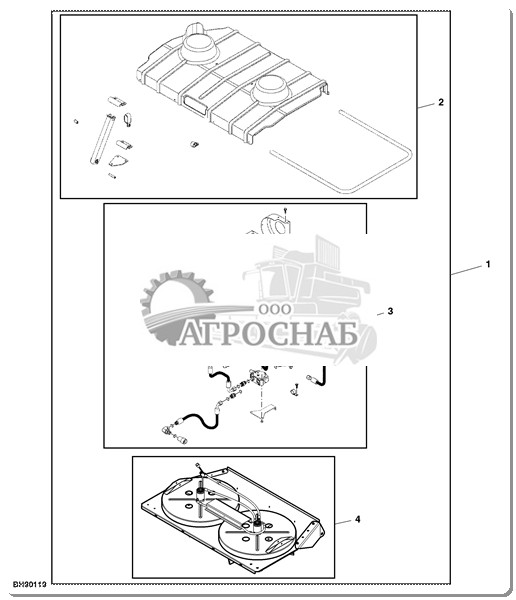

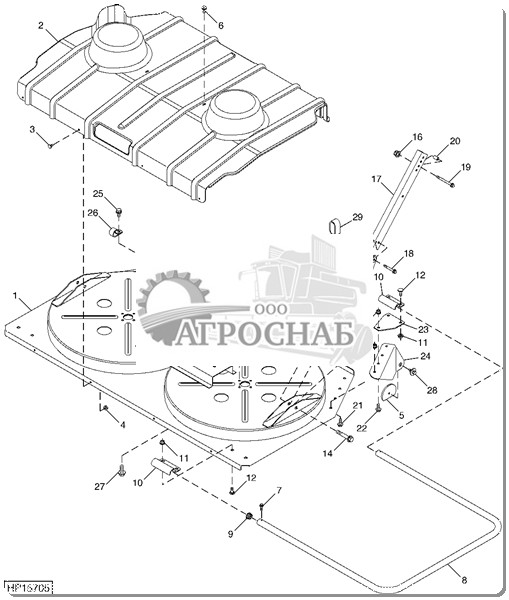

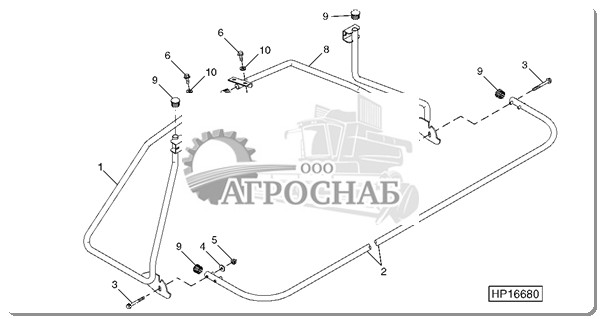

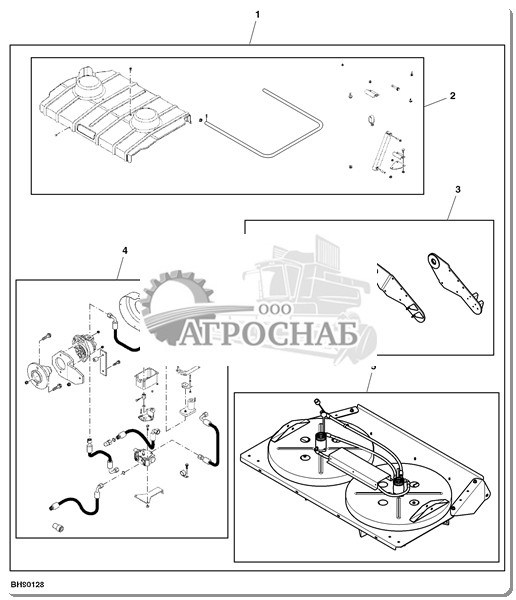

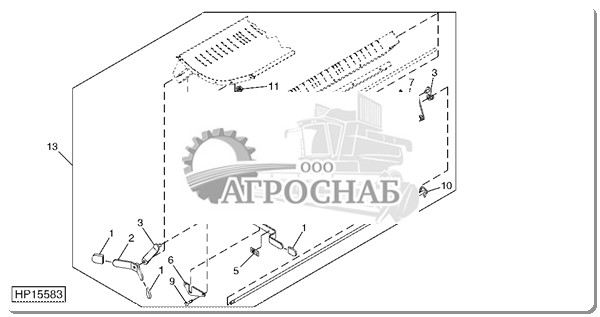

Powercast Tailboard Retrofit, Attachment(Powercast Откидной Борт Модифицированные Крепления)

key	PART NO.	PART NAME	QTY	SERIAL NO.	REMARKS
1	BH90128	Attach.-Bundle Identifier	1
2	BH84457	Spreader	1
3	BH84460	Bracket Kit	1
4	BH84492	Motor Kit	1
5	BH84494	Spreader	1

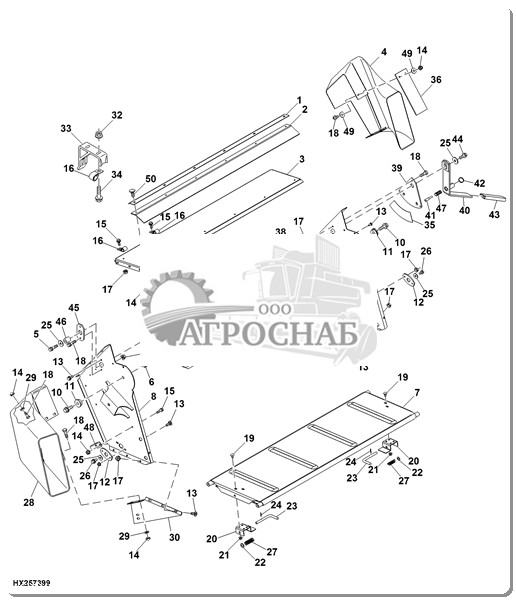

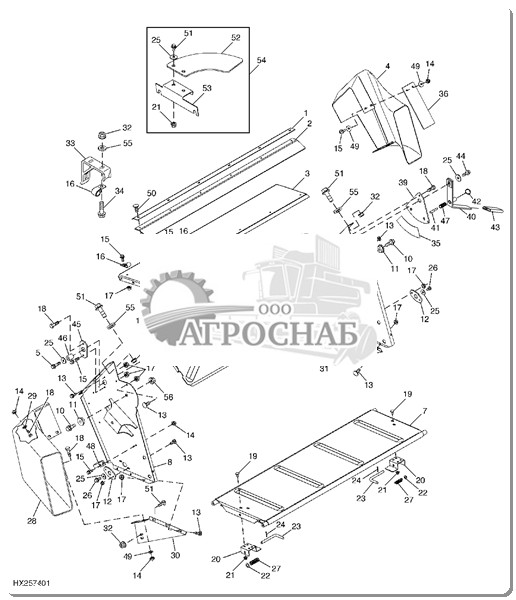

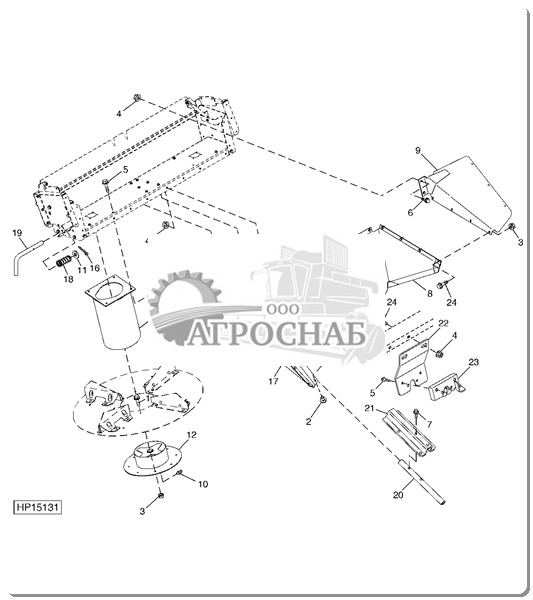

Straw Chopper (715401 - )(Измельчитель Соломы )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	H168323	Strip	1		X	X
2	H229546	Isolator	1		X	X
3	H172614	Sheet	1		X	X
4	H205286	Chute	1		X	X	RH
5	R120256	Screw	1		X	X
6	14M7400	Lock Nut	AR		X	X	M10
7	AH168277	Door	1		X	X
8	AH217813	Sheet	1		X	X	LH
9	AH217814	Sheet	1		X	X	RH
10	19M7824	Screw	2		X	X	M16 X 60
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	H213638	Bushing	2		X	X
12	H157499	Plate	2		X	X
13	03M7184	Bolt	AR		X	X	M8 X 20
14	H137328	Lock Nut	AR		X	X	M8
15	19M7866	Screw	AR		X	X	M8 X 20
16	AH89557	Clip	AR		X	X
17	14M7298	Flange Nut	AR		X	X	M8
18	19M7867	Screw	AR		X	X	M8 X 25
19	03M7190	Bolt	4		X	X	M10 X 20
20	H174305	Bracket	2		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
21	H135891	Lock Nut	4		X	X
22	24H1341	Washer	2		X	X	17/32" X 15/16" X 0.060"
23	H136179	Pin	2		X	X
24	11M7059	Cotter Pin	2		X	X	3.200 X 20 mm
25	24M7101	Washer	AR		X	X	11 X 34 X 3 mm
26	19M7784	Screw	AR		X	X	M10 X 20
27	B28970	Spring	2		X	X
28	H205285	Chute	1		X	X	LH
29	24M7207	Washer	AR		X	X	8.400 X 24 X 2 mm
30	H209929	Sheet	1		X	X	LH
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
31	H209928	Sheet	1		X	X	RH
32	14M7296	Flange Nut	AR		X	X	M10
33	AH220827	Bracket	2		X	X
34	19M7835	Screw	4		X	X	M10 X 35
35	H206978	Label	1		X	X
36	H204853	Flap	2		X	X
37	AH201004	Deflector	1		X	X
38	24H1449	Washer	1		X	X	1-1/32" X 1-1/2" X 0.180"
39	AH201027	Plate	1		X	X
40	AH201026	Handle	1		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
41	H201023	Pin	1		X	X
42	H174818	Ring	1		X	X
43	W25634	Grip	1		X	X
44	H165317	Screw	1		X	X
45	H201116	Plate	1		X	X
46	R117879	Bushing	1		X	X
47	R28783	Compression Spring	1		X	X
48	H204598	Channel	1		X	X
49	24M7024	Washer	AR		X	X	9 X 28 X 3 mm
50	03M7184	Bolt	AR		X	X	M8 X 20
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
51	19M7786	Screw	AR		X	X	M10 X 30
52	H217746	Agitator	2		X	X
53	H234236	Bracket	1		X	X	LH, (SUB FOR H215202 OR H230966)
	H234239	Bracket	1		X	X	RH, (SUB FOR H215203 OR H230995)
54	AH218797	Steel	1		X	X	(A)
55	24M7178	Washer	4		X	X	10.500 X 30 X 2.500 mm
56	14M7589	Lock Nut	2		X	X	M16

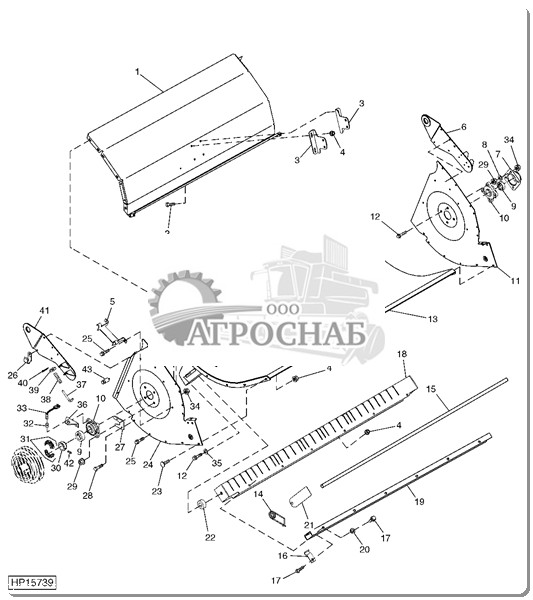

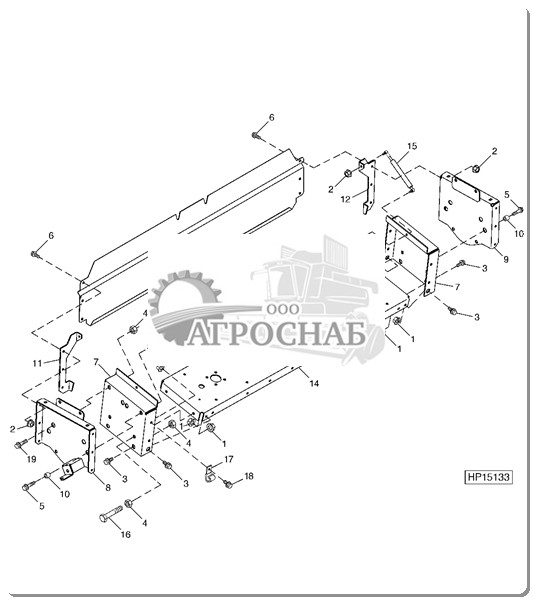

Chopper Housing And Knifebank ( - 715400)(Корпус Измельчителя И Knifebank )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	H215050	Sheet	1		X	X	(SUB FOR H204975)
2	19M7791	Bolt	4		X	X	M12 X 40
3	H208584	Bracket	2		X	X
4	14M7298	Flange Nut	AR		X	X	M8
5	H204769	Bracket	1		X	X
6	AH165095	Bracket	1		X	X	RH
7	H169879	Cover	1		X	X
8	24M7047	Washer	4		X	X	13 X 24 X 2.500 mm
9	JD9201	Eccentric Locking Collar	2		X	X
10	AH163595	Bearing With Housing	2		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	H204974	Sheet	1		X	X	RH
12	19M7814	Screw	6		X	X	M12 X 50
13	AH214452	Floor	1		X	X	(SUB FOR AH204714)
14	H114001	Quick Lock Pin	1		X	X
15	H206215	Crossbar	1		X	X
16	H157103	Clip	8		X	X
17	19M7867	Screw	16		X	X	M8 X 25
18	AH204879	Channel	1		X	X
19	H205201	Support	1		X	X
20	H137328	Lock Nut	AR		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
21	H215004	Blade	35		X	X	(SUB FOR H142141)
22	N110219	Bushing	2		X	X
23	03M7184	Bolt	AR		X	X	M8 X 20
24	H204973	Sheet	1		X	X	LH
25	19M7863	Screw	AR		X	X	M6 X 25 (SUB FOR (AR) 19M7866)
26	AH89557	Clip	2		X	X
27	H167457	Plate	2		X	X
28	19M7866	Screw	2		X	X	M8 X 20 (SUB FOR (2) 19M7868)
29	14M7401	Lock Nut	8		X	X	M12
30	H169947	Sleeve	1		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
31	AH161839	Magnet	1		X	X
32	H160880	Clip	1		X	X
33	AH116104	Sensor	1		X	X	(A)
34	14M7299	Flange Nut	4		X	X	M12
35	24M7180	Washer	2		X	X	13 X 37 X 3 mm
36	H169910	Bracket	1		X	X
37	H165584	Pin	2		X	X
38	M113254	Compression Spring	2		X	X
39	24H1139	Washer	2		X	X	11/16" X 1-1/4" X 0.105"
40	11M7023	Cotter Pin	2		X	X	4 X 32 mm
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
41	AH165094	Bracket	1		X	X	LH
42	22M7079	Set Screw	1		X	X	M6 X 6
43	H204681	Dowel Pin	1		X	X

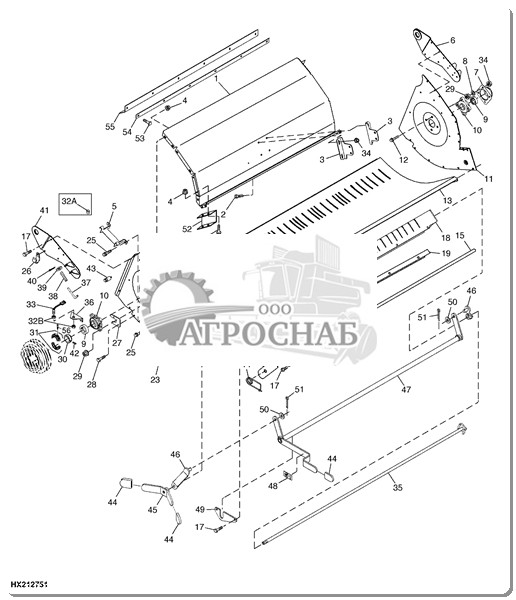

Chopper Housing And Knifebank (715401 - )(Корпус Измельчителя И Knifebank )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	H215050	Sheet	1		X	X
2	19M7791	Bolt	4		X	X	M12 X 40
3	H208584	Bracket	2		X	X
4	14M7298	Flange Nut	AR		X	X	M8
5	H213640	Bracket	1		X	X
6	AH218278	Bracket	1		X	X	RH
7	H169879	Cover	1		X	X
8	24M7047	Washer	4		X	X	13 X 24 X 2.500 mm
9	JD9201	Eccentric Locking Collar	2		X	X
10	AH163595	Bearing With Housing	2		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	H204974	Sheet	1		X	X	RH
12	19M7814	Screw	6		X	X	M12 X 50
13	AH214452	Floor	1		X	X
14	H114001	Quick Lock Pin	1		X	X
15	H206215	Crossbar	1		X	X
16	H157103	Clip	8		X	X
17	19M7867	Screw	AR		X	X	M8 X 25
18	AH218313	Channel	1		X	X
19	H205201	Support	1		X	X
20	H137328	Lock Nut	AR		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
21	H215004	Blade	35		X	X
22	N110219	Bushing	2		X	X
23	03M7184	Bolt	AR		X	X	M8 X 20
24	H204973	Sheet	1		X	X	LH
25	19M7863	Screw	AR		X	X	M6 X 25 (SUB FOR (AR) 19M7866)
26	AH89557	Clip	2		X	X
27	H167457	Plate	2		X	X
28	19M7866	Screw	2		X	X	M8 X 20 (SUB FOR (2) 19M7868)
29	14M7401	Lock Nut	8		X	X	M12
30	H169947	Sleeve	1		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
31	AH161839	Magnet	1		X	X
32A	H160880	Clip	1		X	X
32B	14H904	Nut	2		X	X	3/4"
33	AH116104	Sensor	1		X	X	(A)
34	14M7299	Flange Nut	4		X	X	M12
35	AH234779	Adjuster	1		X	X	(SUB FOR AH214385)
36	H169910	Bracket	1		X	X
37	H165584	Pin	2		X	X
38	M113254	Compression Spring	2		X	X
39	24H1139	Washer	2		X	X	11/16" X 1-1/4" X 0.105"
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
40	11M7023	Cotter Pin	2		X	X	4 X 32 mm
41	AH218277	Bracket	1		X	X	LH
42	22M7079	Set Screw	1		X	X	M6 X 6
43	H204681	Dowel Pin	1		X	X
44	W25634	Grip	3		X	X
45	AH214386	Wing Nut	1		X	X
46	AH214384	Lift Arm	2		X	X
47	AH223985	Adjuster	1		X	X	(SUB FOR AH214383)
48	H218909	Label	1		X	X
49	H215015	End Plate	2		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
50	24M7434	Washer	2		X	X	13 X 20 X 2 mm
51	J16931	Pin	2		X	X
52	H221382	Deflector	2		X	X	(SUB FOR H214963)
53	03M7185	Bolt	6		X	X	M8 X 25
54	H168323	Strip	1		X	X
55	H157528	Seal	1		X	X
56	H168924	Screw	2		X	X

Single Point Adjust Knifebank Kit(Одноточечная Регулировка Комплект Knifebank )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	W25634	Grip	3		X	X
2	AH214386	Wing Nut	1		X	X
3	AH214384	Lift Arm	2		X	X
4	AH223985	Adjuster	1		X	X	(SUB FOR AH214383)
5	H218909	Label	1		X	X
6	H215015	End Plate	2		X	X
7	24M7044	Washer	2		X	X	13 X 20 X 2 mm
8	J16931	Pin	2		X	X
9	19M7867	Screw	AR		X	X	M8 X 25
10	AH234779	Adjuster	1		X	X	(SUB FOR AH214385)
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	14M7298	Flange Nut	AR		X	X	M8
12	H215004	Blade	35		X	X
13	AH219257	Knife Kit	1		X	X

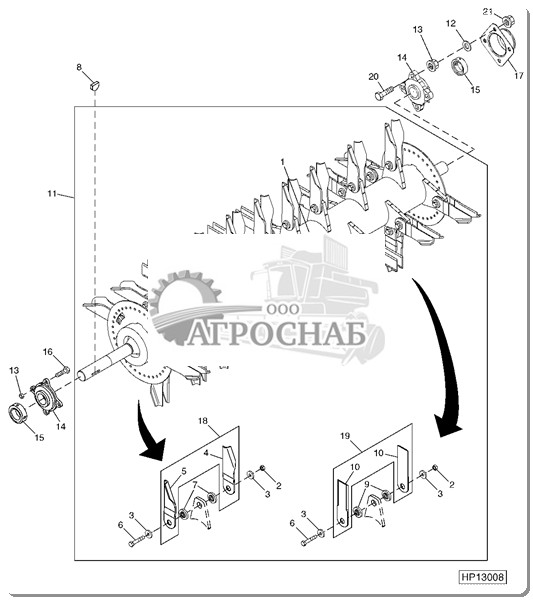

Straw Chopper Rotor(Измельчитель Соломы Ротора)

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	......	Rotor	1		X	X
2	HXE118760	Lock Nut	34		X	X
3	H156101	Washer	68		X	X
4	......	Blade	4		X	X	RH
5	......	Blade	4		X	X	LH
6	19M8499	Cap Screw	34		X	X	M10 X 60
7	H167127	Bushing	48		X	X
8	26H103	Shaft Key	1		X	X	1/4" X 2-1/8"
9	H156100	Bushing	20		X	X
10	......	Blade	8		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	AH212302	Straw Chopper/Whole Goods	1		X	X	(SUB FOR AH204882)
12	24M7047	Washer	4		X	X	13 X 24 X 2.500 mm
13	14M7401	Lock Nut	8		X	X	M12
14	AH163595	Bearing With Housing	2		X	X
15	JD9201	Eccentric Locking Collar	2		X	X
16	19M7791	Bolt	4		X	X	M12 X 40
17	H169879	Cover	1		X	X
18	AH205909	Blade	AR		X	X	(A)
19	AH205910	Blade	AR		X	X	(B)
20	19M7814	Screw	4		X	X	M12 X 50
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
21	14M7299	Flange Nut	4		X	X	M12

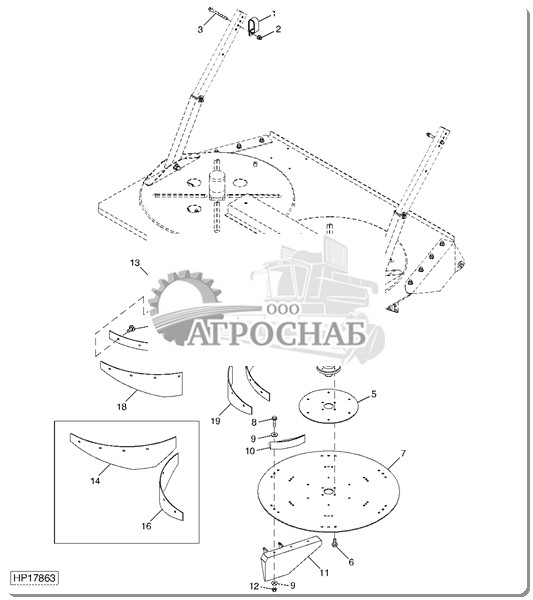

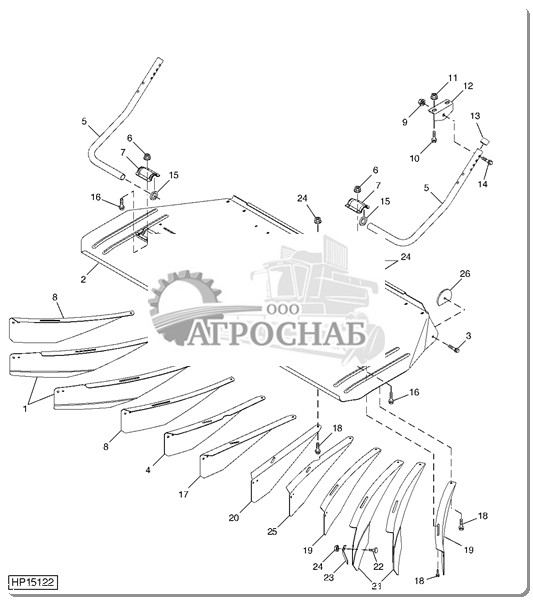

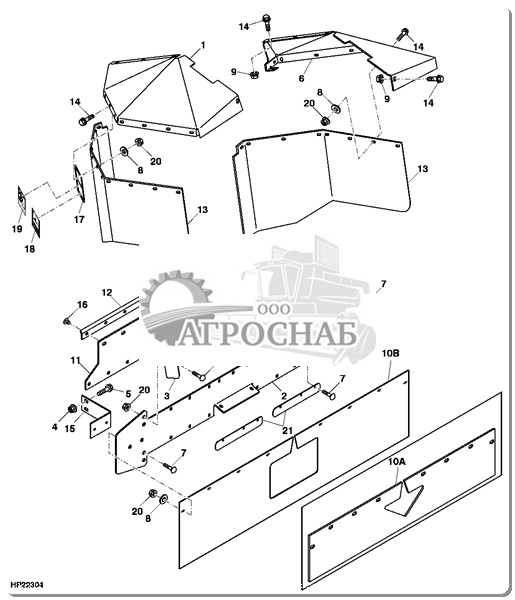

Chopper Tailboard, Vanes And Supports ( - 715400)(Измельчитель Откидной Борт Лопатки И Поддерживает )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	HXE36445	Vane	2		X	X	SUB FOR H204776
2	AH206944	Deflector	1		X	X
3	14M7396	Lock Nut	AR		X	X	M8
4	24M7207	Washer	AR		X	X	8.400 X 24 X 2 mm
5	H204033	Tube	1		X	X	LH
6	14M7397	Lock Nut	8		X	X	M6
7	H161289	Clamp	2		X	X
8	H204032	Tube	1		X	X	RH
9	H135891	Lock Nut	AR		X	X
10	19M7784	Screw	AR		X	X	M10 X 20
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	14M7296	Flange Nut	4		X	X	M10
12	H162520	Bracket	2		X	X
13	H106000	Plug	2		X	X
14	19M8292	Screw	6		X	X	M10 X 50
15	H215556	Sealing Washer	4		X	X	(SUB FOR H136110, THIS APPLICATION)
16	19M7560	Cap Screw	8		X	X	M6 X 16
17	H205374	Seal	1		X	X
18	19M7867	Screw	11		X	X	M8 X 25
	19M7866	Screw	24		X	X	M8 X 20
19	HXE80254	Vane	2		X	X	(SUB FOR H222456)
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
20	19M8291	Screw	12		X	X	M8 X 35
21	HXE80255	Vane	2		X	X	SUB FOR H204777
22	03M7184	Bolt	14		X	X	M8 X 20
23	H176570	Diffuser	8		X	X
24	H137328	Lock Nut	8		X	X
25	HXE80253	Vane	1		X	X	SUB FOR H204751
26	HXE80252	Vane	1		X	X	(SUB FOR H223218)
27	HXE36439	Vane	1		X	X	SUB FOR H223216
28	HXE36441	Vane	1		X	X	SUB FOR H204635
29	HXE36443	Vane	2		X	X	(SUB FOR H222455)

Chopper Tailboard, Vanes And Supports (715401 - )(Измельчитель Откидной Борт Лопатки И Поддерживает )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	HXE36445	Vane	2		X	X	SUB FOR H204776
2	AH218472	Deflector	1		X	X
3	H214957	Bolt	2		X	X
4	HXE36441	Vane	1		X	X	SUB FOR H204635
5	H215396	Support	2		X	X
6	14M7397	Lock Nut	8		X	X	M6
7	H161289	Clamp	2		X	X
8	HXE36443	Vane	2		X	X	SUB FOR H222455
9	H135891	Lock Nut	AR		X	X
10	19M7784	Screw	AR		X	X	M10 X 20
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	14M7296	Flange Nut	4		X	X	M10
12	H162520	Bracket	2		X	X
13	H106000	Plug	2		X	X
14	19M7836	Screw	6		X	X	M10 X 110
15	H215556	Sealing Washer	4		X	X
16	19M7560	Cap Screw	8		X	X	M6 X 16
17	HXE36439	Vane	1		X	X	SUB FOR H223216
18	19M7866	Screw	AR		X	X	M8 X 20
19	HXE80254	Vane	2		X	X	SUB FOR H222456
20	HXE80252	Vane	1		X	X	SUB FOR H223218
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
21	HXE80255	Vane	2		X	X	SUB FOR H204777
22	03M7184	Bolt	14		X	X	M8 X 20
23	H176570	Diffuser	8		X	X
24	H137328	Lock Nut	8		X	X
25	HXE80253	Vane	1		X	X	SUB FOR H204751
26	H214956	Nut	2		X	X

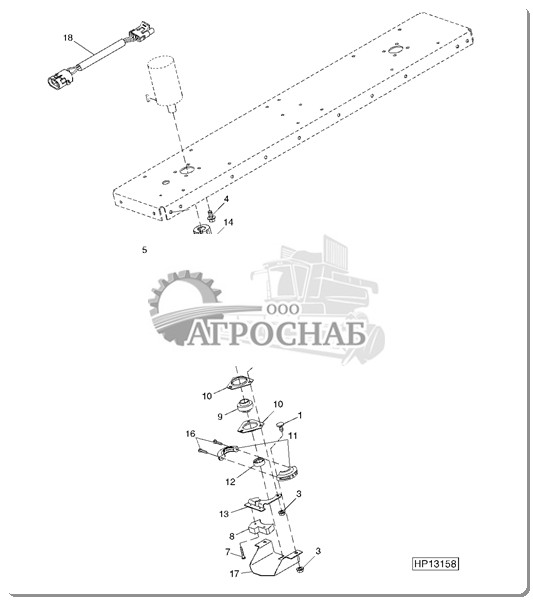

PowerCast Tailboard Conversion, Attachment(PowerCast Преобразования Откидной Борт Насадка)

key	PART NO.	PART NAME	QTY	SERIAL NO.	REMARKS
1	BH90119	Attach.-Bundle Identifier	1
2	BH84457	Spreader	1
3	BH84493	Motor Kit	1
4	BH84494	Spreader	1

Wide Spread Tailboard and Mounting(Широкое распространение откидной борт и монтажа)

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	AH228200	Deflector	1		X	X	(SUB FOR AH208987)
2	H229095	Cover	1		X	X
3	03M7183	Bolt	AR		X	X	M8 X 16
4	14M7298	Flange Nut	AR		X	X	M8
5	H214956	Nut	2		X	X
6	19M7866	Screw	AR		X	X	M8 X 20
7	37M7089	Screw	4		X	X	M6 X 12
8	H215333	Tube	2		X	X
9	H106000	Plug	4		X	X
10	H215350	Plate	4		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	14M7401	Lock Nut	AR		X	X	M12
12	03M7198	Bolt	AR		X	X	M12 X 30
13	AH217682	Channel	2		X	X	17.5 in.
14	19M7810	Screw	2		X	X	M10 X 80
15	H220201	Bushing	2		X	X
16	14M7400	Lock Nut	AR		X	X	M10
17	AH214196	Channel	2		X	X	22 in.
	AH214694	Channel	2		X	X	24.5 in., USE WITH BH84492
18	19M7810	Screw	2		X	X	M10 X 80
19	19M7836	Screw	2		X	X	M10 X 110
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
20	H219262	Bushing	2		X	X
21	19M7789	Screw	AR		X	X	M12 X 30
22	19M7791	Bolt	AR		X	X	M12 X 40
23	H215349	Plate	2		X	X
24	H209114	Bracket	1		X	X	RH
	H209113	Bracket	1		X	X	LH
25	19M7865	Screw	1		X	X	M8 X 16
26	AH78237	Clamp	1		X	X
27	19M7784	Screw	AR		X	X	M10 X 20
28	H214957	Bolt	2		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
29	AH77869	Clip	1		X	X

Wide Spread Tailboard Twin Disks and Deflector(Широкое распространение откидной борт две диски и дефлектор)

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	AH77869	Clip	1		X	X
2	14M7296	Flange Nut	AR		X	X	M10
3	19M7784	Screw	AR		X	X	M10 X 20
4	H211288	Hub	2		X	X
5	H212821	Disk	2		X	X
6	19M7863	Screw	AR		X	X	M6 X 25 SUB FOR (AR) 19M7866
7	H212820	Disk	2		X	X	(A)
	H222599	Disk	2		X	X	(B)
8	19M7897	Screw	AR		X	X	M8 X 35
9	24M7207	Washer	AR		X	X	8.400 X 24 X 2 mm
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
10	H214211	Deflector	12		X	X
11	H214206	Blade	6		X	X
	H214208	Blade	6		X	X
12	14M7396	Lock Nut	AR		X	X	M8
13	14M7298	Flange Nut	AR		X	X	M8
14	H210254	Shroud	1		X	X	SUB H229543 AND H229544; LH
15	H218025	Bolt	8		X	X
16	H210255	Shroud	1		X	X	SUB H229541 AND H229542; RH
17	H229543	Shroud	1		X	X	LH
18	H229544	Shroud	1		X	X	LH
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
19	H229542	Shroud	1		X	X	RH
20	H229541	Shroud	1		X	X	RH

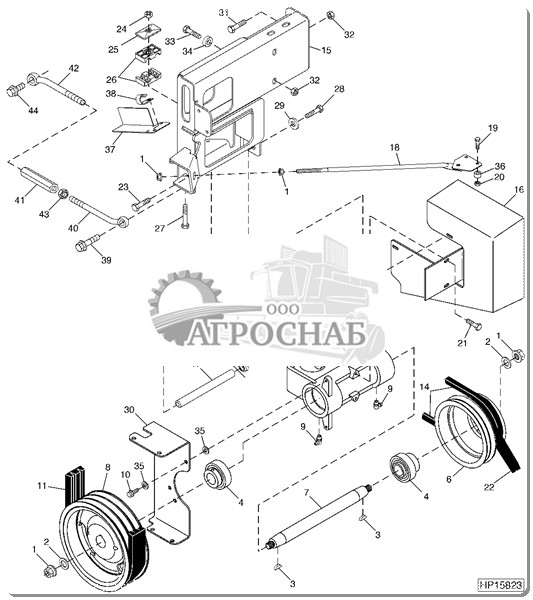

Straw Chopper Jackshaft(Измельчитель Соломы Промежуточного Вала )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	14M7300	Flange Nut	4		X	X	M20
2	24M7242	Washer	2		X	X	21.400 X 42 X 5 mm
3	26M6787	Shaft Key	2		X	X	10 X 32 mm
4	AH170744	Ball Bearing	2		X	X
5	AH206163	Arm	1		X	X
6	H156975	Pulley	1		X	X
7	H222676	Jackshaft	1		X	X	(SUB FOR H157539)
8	H161983	Pulley	1		X	X
9	JD7806	Lubrication Fitting	2		X	X
10	19M7866	Screw	3		X	X	M8 X 20
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	HXE15671	V-Belt	1		X	X	LGTH = 2575 mm, WIDTH = 4 9.9 mm, SUB FOR H157514
12	AA5607R	Seal	2		X	X
13	H171061	Bushing	2		X	X
14	H168301	V-Belt	1		X	X	LGTH = 3414 mm, WIDTH = 22.352 mm
15	AH201228	Support	1		X	X
16	AH207342	Shield	1		X	X	(A)
	AH207341	Shield	1		X	X	(B)
17	H201324	Weld Pin	1		X	X
18	AH171787	Brace	1		X	X
19	19M7786	Screw	2		X	X	M10 X 30
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
20	14M7296	Flange Nut	2		X	X	M10
21	19M7865	Screw	2		X	X	M8 X 16
22	H235564	V-Belt	1		X	X	LGTH = 3665 mm, WIDTH = 3 7.2 mm, SUB FOR H204747
23	19M7793	Screw	1		X	X	M16 X 40
24	14M7298	Flange Nut	1		X	X	M8
25	H112567	Plate	1		X	X
26	H115379	Clamp	2		X	X
27	19M7803	Screw	1		X	X	M8 X 70
28	H155973	Screw	1		X	X
29	24M7338	Washer	1		X	X	17 X 30 X 3 mm
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
30	H206597	Bracket	1		X	X
31	19M7789	Screw	2		X	X	M12 X 30
32	14M7299	Flange Nut	4		X	X	M12
33	19M7814	Screw	2		X	X	M12 X 50
34	N61709	Bushing	2		X	X
35	24M7024	Washer	6		X	X	9 X 28 X 3 mm
36	H123918	Spacer	2		X	X
37	H216533	Bracket	1		X	X	(SUB FOR H171998)
38	AH90990	Clip	1		X	X
39	19M7824	Screw	1		X	X	M16 X 60
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
40	H221041	Eyebolt	1		X	X
41	H172173	Turnbuckle	1		X	X
42	H221055	Eyebolt	1		X	X
43	14M7276	Nut	1		X	X	M16
44	19M7843	Screw	1		X	X	M16 X 35

Chopper and Spreader Drive Shields(Измельчитель и Разбрасыватель езды щиты)

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	Z59868	Label	1		X	X
2	H132902	Cap	1		X	X	(C)
	H137603	Shield	1		X	X	(D)
3	19M7865	Screw	4		X	X	M8 X 16
4	AH204635	Shield	1		X	X
5	AH204634	Latch	1		X	X
6	AH89461	Pin Fastener	1		X	X
7	AH220869	Shield	1		X	X
8	Z60329	Label	1		X	X
9	H171910	Label	1		X	X	(A)
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
	H208472	Label	1		X	X	(B)
10	H204598	Channel	1		X	X
11	19M7866	Screw	2		X	X	M8 X 20
12	H137328	Lock Nut	2		X	X
13	H208568	Bumper	1		X	X
14	37M7072	Screw	1
15	H221497	Structural Tube	1		X	X
16	19M7798	Screw	2		X	X	M8 X 40

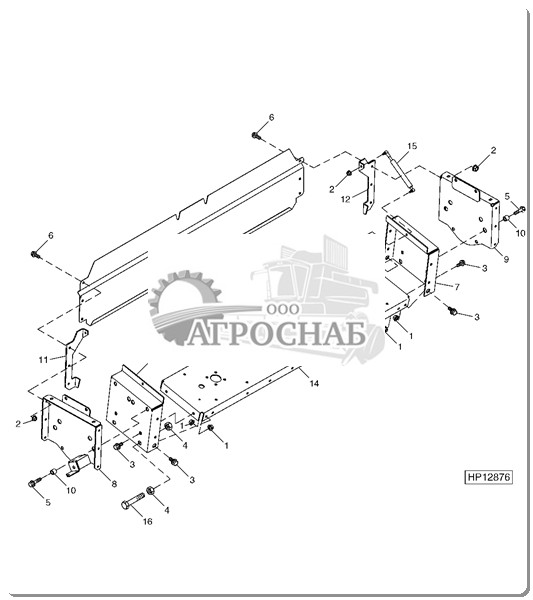

Straw Spreader Frame ( - 715400)(Разбрасыватель Соломы Каркасный )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	14M7296	Flange Nut	8		X	X	M10
2	14M7298	Flange Nut	10		X	X	M8
3	19M7785	Screw	8		X	X	M10 X 25
4	14M7299	Flange Nut	2		X	X	M12
5	19M7791	Bolt	2		X	X	M12 X 40
6	19M7866	Screw	6		X	X	M8 X 20
7	H202802	Bracket	2		X	X
8	AH202971	Bracket	1		X	X
9	H202745	Bracket	1		X	X
10	28H2514	Bushing	2		X	X	0.546" X 0.840" X 3/4"
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	H163825	Bracket	1		X	X
12	H163826	Bracket	1		X	X
13	H174291	Panel	1		X	X
14	H164857	Support	1		X	X
15	AH160070	Gas Operated Cylinder	2		X	X
16	19M7904	Cap Screw	1		X	X	M12 X 160

Straw Spreader Frame (715401 - )(Разбрасыватель Соломы Каркасный )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	14M7296	Flange Nut	AR		X	X	M10
2	14M7298	Flange Nut	AR		X	X	M8
3	19M7785	Screw	AR		X	X	M10 X 25
4	14M7299	Flange Nut	AR		X	X	M12
5	19M7791	Bolt	4		X	X	M12 X 40
6	19M7866	Screw	6		X	X	M8 X 20
7	H202802	Bracket	2		X	X
8	AH202971	Bracket	1		X	X
9	H202745	Bracket	1		X	X
10	28H2514	Bushing	2		X	X	0.546" X 0.840" X 3/4"
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	H163825	Bracket	1		X	X
12	H163826	Bracket	1		X	X
13	H174291	Panel	1		X	X
14	H164857	Support	1		X	X
15	AH160070	Gas Operated Cylinder	2		X	X
16	19M7729	Cap Screw	1		X	X	M12 X 160
17	AH77279	Clip	1		X	X
18	19M7865	Screw	1		X	X	M8 X 16
19	19M7788	Screw	2		X	X	M12 X 25

Straw Spreader And Deflectors ( - 715400)(Разбрасыватель Соломы И Дефлекторы )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	19M7867	Screw	AR		X	X	M8 X 25
2	03M7184	Bolt	AR		X	X	M8 X 20
3	H137328	Lock Nut	AR		X	X
4	14M7298	Flange Nut	AR		X	X	M8
5	19M7866	Screw	46		X	X	M8 X 20
6	19M7867	Screw	4		X	X	M8 X 25
7	24M7207	Washer	AR		X	X	8.400 X 24 X 2 mm
8	AH158935	Shroud	1		X	X	RH
	AH158902	Shroud	1		X	X	LH
9	AH166869	Panel	1		X	X	RH
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
	AH166868	Panel	1		X	X	LH
10	JD7844	Lubrication Fitting	1		X	X
11	24H1341	Washer	1		X	X	17/32" X 15/16" X 0.060"
12	AH159872	Hub	2		X	X
13	H172643	Limit Curtain	1		X	X
14	AH162235	Tube	2		X	X
15	14M7296	Flange Nut	8		X	X	M10
16	11M7059	Cotter Pin	1		X	X	3.200 X 20 mm
17	H202624	Shield	1		X	X
18	B28970	Spring	1		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
19	H136179	Pin	1		X	X
20	H171600	Bushing	1		X	X
21	H171599	Support	1		X	X
22	H171615	Bracket	1		X	X
23	KV13784	Latch	1		X	X
24	19M7800	Screw	2		X	X	M8 X 50
25	19M7863	Screw	2		X	X	M6 X 25
26	37M7058	Screw	2		X	X	M8 X 20

Straw Spreader And Deflectors (715401 - )(Разбрасыватель Соломы И Дефлекторы )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	19M7867	Screw	AR		X	X	M8 X 25
2	03M7184	Bolt	AR		X	X	M8 X 20
3	H137328	Lock Nut	AR		X	X
4	14M7298	Flange Nut	AR		X	X	M8
5	19M7863	Screw	2		X	X	M6 X 25
6	19M7867	Screw	4		X	X	M8 X 25
7	37M7058	Screw	2		X	X	M8 X 20
8	AH158935	Shroud	1		X	X	RH
	AH158902	Shroud	1		X	X	LH
9	AH166869	Panel	1		X	X	RH
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
	AH166868	Panel	1		X	X	LH
10	JD7844	Lubrication Fitting	1		X	X
11	24H1341	Washer	1		X	X	17/32" X 15/16" X 0.060"
12	AH159872	Hub	2		X	X
13	03M7183	Bolt	AR		X	X	M8 X 16
14	AH162235	Tube	2		X	X
15	14M7296	Flange Nut	8		X	X	M10
16	11M7059	Cotter Pin	1		X	X	3.200 X 20 mm
17	H202624	Shield	1		X	X
18	B28970	Spring	1		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
19	H136179	Pin	1		X	X
20	H171600	Bushing	1		X	X
21	H171599	Support	1		X	X
22	H219363	Bracket	1		X	X
23	KV13784	Latch	1		X	X
24	19M7865	Screw	AR		X	X	M8 X 16

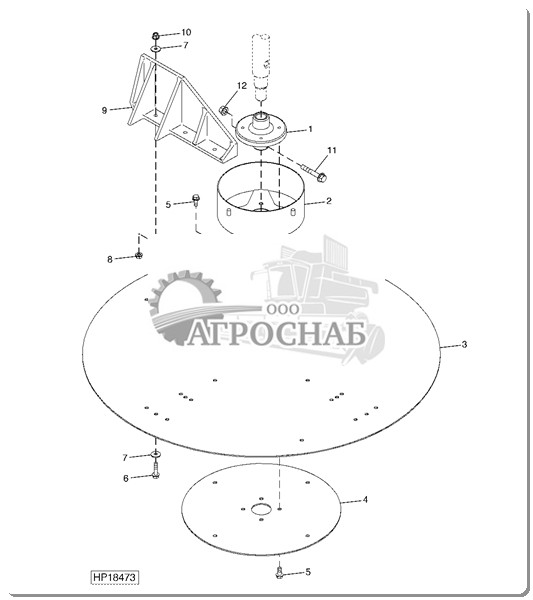

STRAW SPREADER DISKS(РАЗБРАСЫВАТЕЛЬ СОЛОМЫ ДИСКОВ)

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	H171890	Plate	2		X	X
2	H137328	Lock Nut	48		X	X
3	24M7207	Washer	48		X	X	8.400 X 24 X 2 mm
4	H174163	Reinforcement	8		X	X
5	03M7184	Bolt	40		X	X	M8 X 20
6	H170374	Blade	8		X	X
7	AH163361	Pin	2		X	X
8	M64720	Rivet	2		X	X

Straw Spreader Hoops And Supports (715401 - )(Разбрасыватель Соломы Обручи И Поддерживает )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	AH214586	Support	1		X	X
2	AH214588	Tube	1		X	X
3	19M7803	Screw	2		X	X	M8 X 70
4	24M7024	Washer	2		X	X	9 X 28 X 3 mm
5	14M7298	Flange Nut	AR		X	X	M8
6	19M7786	Screw	8		X	X	M10 X 30
7	14M7296	Flange Nut	8		X	X	M10
8	AH214587	Support	1		X	X
9	H165547	Plug	AR		X	X
10	24M7178	Washer	4		X	X	10.500 X 30 X 2.500 mm

Straw Spreader Shields ( - 715400)(Разбрасыватель Соломы Шилдс )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	AH205342	Shield	1		X	X
2	H203903	Shield	1		-	710500
	H203903	Shield	1		-	710600
	H216413	Shield	1	710501	-
	H216413	Shield	1	710601	-
3	H169622	Angle	2		X	X
4	14M7299	Flange Nut	4		X	X	M12
5	19M7787	Screw	4		X	X	M12 X 20
6	AH205344	Shield	1		X	X
7	03M7184	Bolt	AR		X	X	M8 X 20
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
8	24M7207	Washer	AR		X	X	8.400 X 24 X 2 mm
9	14M7396	Lock Nut	AR		X	X	M8
10A	H202834	Limit Curtain	1		X	X	(SUB HXE27148)
10B	HXE27148	Limit Curtain	1		X	X
11	H169618	Limit Curtain	1		X	X
12	H168741	Strip	1		X	X
13	H171649	Limit Curtain	2		X	X
14	19M7865	Screw	AR		X	X	M8 X 16
15	H202733	Bracket	2		X	X
16	M64720	Rivet	AR		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
17	H210848	Plate	2		X	X	(INCLUDES H149096 AND H210615)
18	H149096	Safety Sign	2		X	X
19	H210615	Safety Sign	2		X	X

Straw Spreader Shields (715401 - )(Разбрасыватель Соломы Шилдс )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	AH205342	Shield	1		X	X
2	H216413	Shield	1		X	X
3	H169622	Angle	2		X	X
4	14M7299	Flange Nut	4		X	X	M12
5	19M7788	Screw	4		X	X	M12 X 25
6	AH205344	Shield	1		X	X
7	03M7184	Bolt	AR		X	X	M8 X 20
8	24M7207	Washer	AR		X	X	8.400 X 24 X 2 mm
9	14M7298	Flange Nut	AR		X	X	M8
10A	H202834	Limit Curtain	1		X	X	(SUB HXE27148)
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
10B	HXE27148	Limit Curtain	1		X	X
11	H169618	Limit Curtain	1		X	X
12	H168741	Strip	1		X	X
13	H171649	Limit Curtain	2		X	X
14	19M7865	Screw	AR		X	X	M8 X 16
15	H202733	Bracket	2		X	X
16	M64720	Rivet	AR		X	X
17	H210848	Plate	2		X	X	(INCLUDES H149096 AND H210615)
18	H149096	Safety Sign	2		X	X
19	H210615	Safety Sign	2		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
20	H137328	Lock Nut	AR		X	X
21	H231676	Wear Plate	2		X	X

STRAW SPREADER BEARING AND SPEED SENSOR(РАЗБРАСЫВАТЕЛЬ СОЛОМЫ ПОДШИПНИК И ДАТЧИК СКОРОСТИ )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	03M7183	Bolt	2		X	X	M8 X 16
2	03M7184	Bolt	6		X	X	M8 X 20
3	14M7298	Flange Nut	8		X	X	M8
4	19M7784	Screw	4		X	X	M10 X 20
5	19M7805	Screw	2		X	X	M10 X 45
6	26H22	Shaft Key	2		X	X	1/4" X 1"
7	37M7077	Screw	2		X	X
8	AH131320	Switch	1		X	X	(A)
9	AH214862	Ball Bearing	1		X	X	(SUB FOR AH169077)
10	H103264	Pressed Flanged Housing	2		X	X
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	AH161838	Actuator	1		X	X
12	JD8554	Eccentric Locking Collar	1		X	X
13	H148271	Bracket	1		X	X
14	H154608	Quick Coupler	1		X	X
15	H167246	Pin	1		X	X
16	H168924	Screw	2		X	X
17	H169987	Shield	1		X	X
18	AH211644	Wiring Harness	1		X	X	(SUB FOR AH201173)

Spreader Latch And Handle ( - 715400)(Разбрасыватель Защелка И Ручка )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	19M7828	Screw	1		X	X	M16 X 100
2	AH203078	Tube	1		X	X
3	AH207338	Latch	1		X	X
4	14M7589	Lock Nut	1		X	X	M16 (SUB FOR W39621)
5	H172174	Eyebolt	1		X	X
6	AH202609	Bracket	1		X	X
7	AH206453	Pin	1		X	X
8	28H2482	Bushing	2		X	X	0.546" X 0.840" X 1/2"
9	H170080	Clip	1		X	X
10	14M7260	Nut	1		X	X	M16
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	19M7784	Screw	2		X	X	M10 X 20
12	AH164852	Pin	1		X	X
13	14M7296	Flange Nut	2		X	X	M10

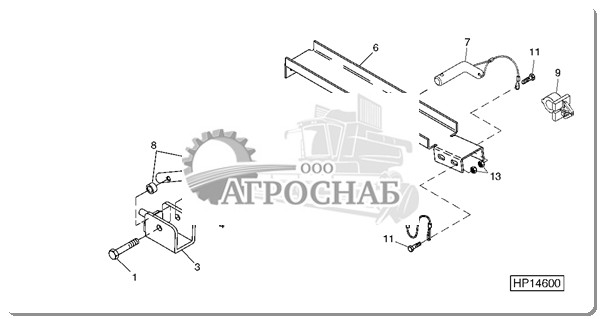

Spreader Latch And Handle (715401 - )(Разбрасыватель Защелка И Ручка )

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	19M7819	Screw	1		X	X	M12 X 90
2	AH203078	Tube	1		X	X
3	AH202566	Latch	1		X	X
4	14M7401	Lock Nut	1		X	X	M12
5	H172174	Eyebolt	1		X	X
6	H216157	Support	1		X	X
7	AH206453	Pin	1		X	X
8	28H2482	Bushing	2		X	X	0.546" X 0.840" X 1/2"
9	19M7800	Screw	1		X	X	M8 X 50
10	14M7260	Nut	1		X	X	M16
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
11	19M7866	Screw	2		X	X	M8 X 20
12	14M7298	Flange Nut	4		X	X	M8
13	AH135290	Quick Lock Pin	1		X	X

Straw Spreader Disks(Разбрасыватель Соломы Дисков)

key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
1	H211288	Hub	2		X	X
2	AH222249	Hub	2		X	X
3	H223406	Disk	2		X	X
4	H223405	Disk	2		X	X
5	19M7866	Screw	6		X	X	M8 X 20
6	19M7897	Screw	AR		X	X	M8 X 35
7	24M7207	Washer	AR		X	X	8.400 X 24 X 2 mm
8	14M7298	Flange Nut	AR		X	X	M8
9	H223407	Blade	4		X	X	LH
	H223408	Blade	4		X	X	RH
key	PART NO.	PART NAME	QTY	SERIAL NO.	9660	9760	REMARKS
10	14M7396	Lock Nut	AR		X	X	M8
11	HXE92569	Screw	1		X	X
12	H137328	Lock Nut	1		X	X
